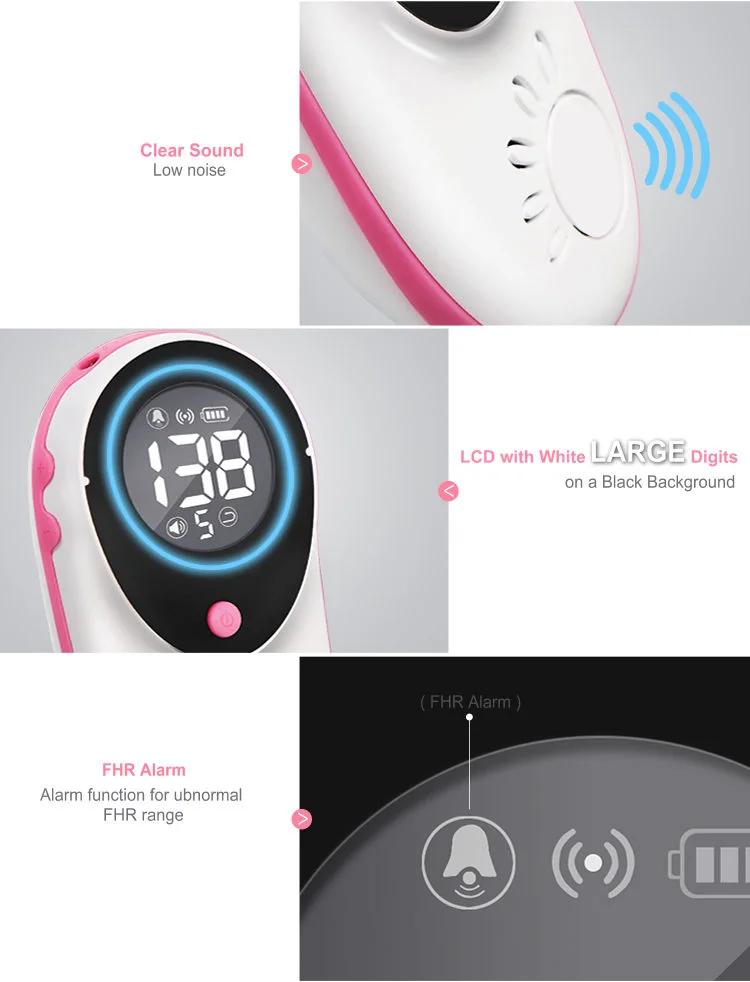

Sonotech 5 Wired Sonde fetal doppler Sonotech 5W Wireless Sonde fetal doppler High sensitivity and Easy to operate Built in memory for data storage Alarm Funktion for ubnormal Spektrum LCD with White Digits on a Black Background +30 Hrs Operation on 3 AAA Alkaline Akkus Built In Speaker (=1

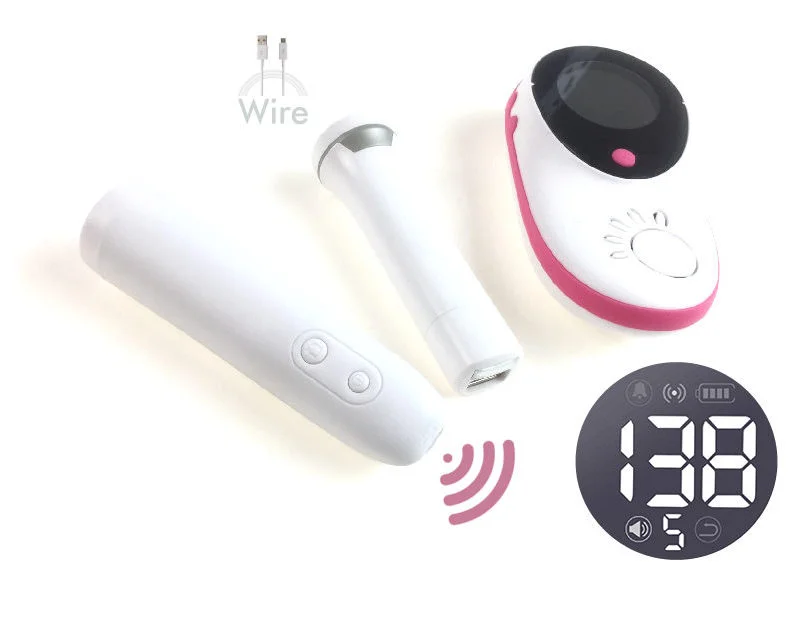

Sonotech 5 Wired Sonde fetal doppler
Sonotech 5W Wireless Sonde fetal doppler
High sensitivity and Easy to operate
Auto Power Off on No Signal (2 min) Funktion

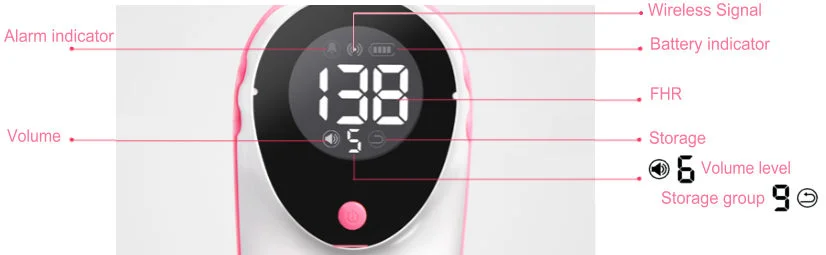

Indicator for :
Signal level (between wirless Sonde and the doppler)
Alarm for ubnormal FHR Spektrum
Volume (0-6)
Akkukapazität
Storage number (0-9)
Fetal Doppler Sonden
Sonotech 5W Sonde :
Built in rechargable Akku
Record Funktion can be done by Sonde
Technical Spezifikation
Classification:
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B equipment
Harmful Liquid Proof Degree: IP×4
geeignet Using Spektrum: geeignet for use after the 16th week of pregnancy
Physical Characteristic:
Main device: 132mm(L)×68mm(W)×34mm(H)
Sonde:
Sonotech 5 models:31mm(Ø)×103mm(H)
Sonotech 5W models:32mm(Ø)×120mm(H)
LCD Anzeige:38mm(Ø)
Weight: Über 200g (einschließlich Akkus) Umgebung:
Working
Umgebung:Temperature: + 5°C~ + 40°C Humidity:≤80%
Atmospheric Pressure: 70kpa ~106kpa
Transport and Storage:
Temperature:-40℃~ + 55℃ Humidity:≤90%
Atmospheric Pressure: 50kPa ~106kpa
Power:
power supply.
AC/DC Adaptor:
Input:AC100~240V,50Hz/60Hz,0.2A MAX.
Output:DC 5V,1000mA,5VA.
FHR Performance:
FHR Measuring Spektrum:50-210BPM(Beat per minute) Resolution:1BPM
Accuracy: ±2BPM Sonde:
Working Frequency:2.5MHz±10%
Output power: <10mW/cm²
Spatial-peak temporal peak acoustic pressure: <0.1Mpa
Ovearll Sensitivity: ≥90dB
