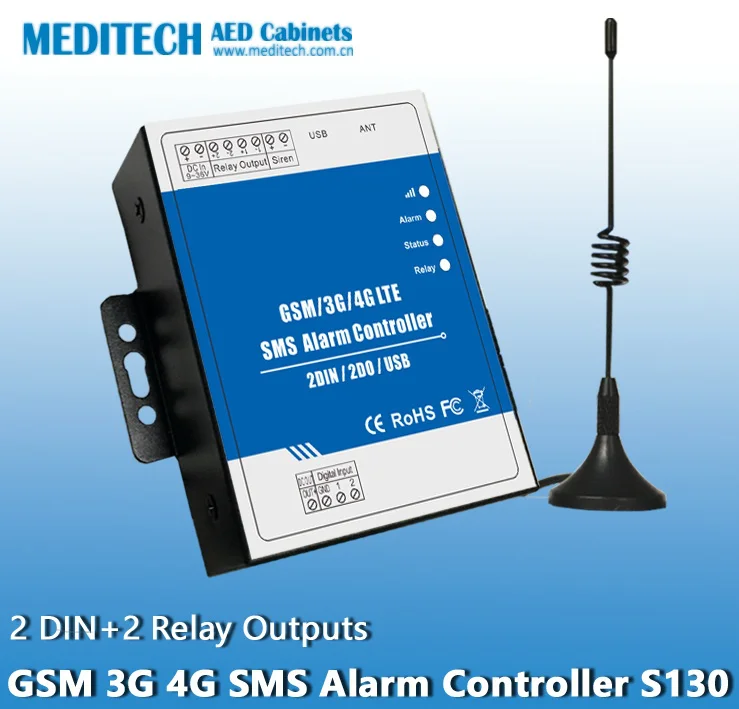

Can be operated from anywhere, no distance limitation; Quad band 850/900/1800/1900Mhz GSM Module inside
Can be operated from anywhere, no distance limitation;
Quad band 850/900/1800/1900Mhz GSM Module inside.
3G/4G Modules are Optional;
Modular Design, can easily upgrade the cellular module if network upgrade;
Embedded 32 bit ARM9 MCU, zuverlässig performance with in-built watchdog;
breit Spektrum power supply 9~36VDC with over voltage and phase-reversal protection;
2 digital input, compatibles dry Kontakt and wet Kontakt , unterstützen EOL connection;
2 relay output(240VAC@3A), 1 relay output (240VAC@3A) can be switched ON/OFF by sending a SMS text, the other one can be switch on 4minutes if any inputs triggered;
Supports input Status recovery, external power failure alert by SMS texts;
Provides 1 channel 9~36VDC power source output for external device, saving wiring cost;
Up to 3 user’s phone number to receive alarm and daily report SMS and 5 user’s phone number to receive alarm Call;
Provide free charge SMS APP to operations;
Inbuilt large capacity rechargeable backup Akku, external power Überwachung alarm;
Industrial class Design geeignet for long time work Anwendungen;
unterstützen configure parameters, load profiles and upgrade the firmware via USB port;
Using metal shell, protection class IP30. Metal shell and system security isolation, especially geeignet for industrial Anwendungen in the field;
Small size, L70 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
