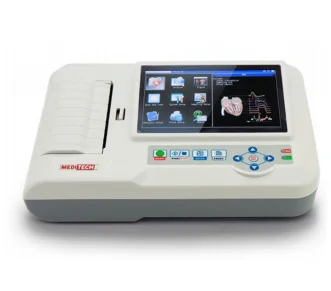

EKG6012 ECG Digital 3/ 6 Canale Caracteristici: LCD Color 800×480TFT Cablu ECG cu 12 canale, achizitie simultana, procesor digital pentru semnal, filtre AC, linie de baza, EMG
EKG6012
ECG Digital 3/ 6 Canale
Caracteristici:
LCD Color 800×480TFT
Cablu ECG cu 12 canale, achizitie simultana, procesor digital pentru semnal, filtre AC, linie de baza, EMG.
Afisare simultana pe 3/6/12 canale.
Diverse moduri de imprimare cum ar fi 6+1(rhythm), 6, 4+1(rhythm),4, 3+1(rhythm), 3, 2+1(rhythm), 2, rhythm 7,rhythm 6,rhythm 5, rhythm 4, rhythm 3, rhythm 2, manuell etc.
Functie de autoanaliza si autointerpretare a parametrilor ECG, masurarea parametrilor: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc.
Alimentare AC/DC, baterie incorporata. Functionare 4 ore cu bateria incarcata sau imprimare continua pana la 90 de minute.
In modul review puteti reexamina una ECG, autoanaliza si autointerpretarea parametrilor.
Specificatii tehnice:
Safety Type: Class I, Type CF
Canale: Standard 12 leads
Intrare: Protectie la defibrilare
Frecventa de citire: 1000Hz
Conversie A/D: 12bit
Frecventa de raspuns: 0.05Hz~150Hz (-3dB, + 0.4dB)
Voltaj polarizare: ±300mV
Nivel zgomot: ≤15μVp-p
EMG interference filter: 25/35Hz (-3dB)
Fltru AC: 50/60Hz (≥20dB)
Imprimare: hartie termica, 110mm(W)×20m(L)
Sensibilitate: 2.5, 5, 10, 20, 40mm/mV, Auto.
Viteza hartie
Auto-record: 25mm/s, 50mm/s
Rhythm record: 25mm/s, 50mm/s
manuell-record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
Dimensiune: 340mm(L)×320mm(W)×85mm(H)
Greutate: 1.7 kg
