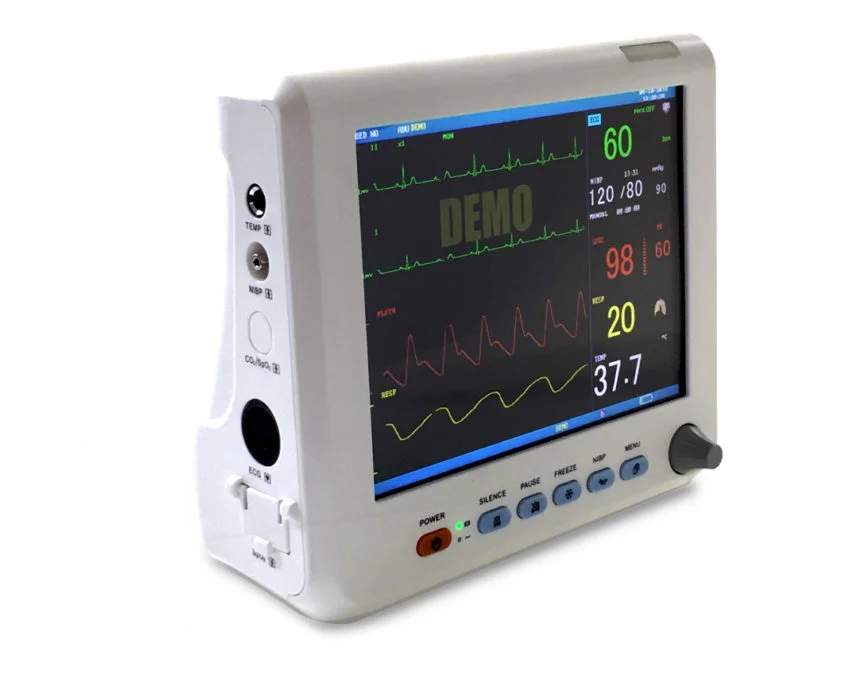

High resolution 8” color TFT Anzeige 6 Parameters : ECG, Resp, NIBP, SpO2, TEMP, Light weight, kompakt and tragbar Built-in rechargeable lithium Akku Unique human voice alarm Rich Bildschirm layouts: Standard, Big font, Trend table, NIBP trend, ECG full lead, OxyCRG, IoC Layout Powerful storage: Maximum 720 Hour graphic and tabular trends of all parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all waveforms System software can be upgraded through network Data and waveforms color be adjustable Arrhythmia analysis and S-T segment analysis geeignet for Erwachsene, paediatric and neonatal patient Options Invasive Blood Pressure (IBP) Carbon dioxide (CO2) Module Masimo SpO2 Module Thermal Printer Touch Bildschirm Car Charger Accessories: Standard: ECG Cable (5 Leads)
High resolution 8” color TFT Anzeige
6 Parameters : ECG, Resp, NIBP, SpO2, TEMP,
Light weight, kompakt and tragbar
Built-in rechargeable lithium Akku
Unique human voice alarm
Rich Bildschirm layouts: Standard, Big font, Trend table, NIBP trend, ECG full lead, OxyCRG, IoC Layout
Powerful storage: Maximum 720 Hour graphic and tabular trends of all
parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all waveforms
System software can be upgraded through network
Data and waveforms color be adjustable
Arrhythmia analysis and S-T segment analysis
geeignet for Erwachsene, paediatric and neonatal patient
Options
Invasive Blood Pressure (IBP)
Carbon dioxide (CO2) Module
Masimo SpO2 Module
Thermal Printer
Touch Bildschirm
Car Charger
Car Charger
Accessories:
Standard:
ECG Cable (5 Leads) …… 1Pcs
SpO2 Cable (Erwachsene) …….. 1Pcs
TEMP Sonde (Erwachsene) ……. 1Pcs
NIBP Cuff (Erwachsene) ………… 1Pcs
NIBP Tube(150cm) ……… 1Pcs
Ground Cable ……………. 1Pcs
Power Cable ………………. 1Pcs
Cleaning Cloth ……………. 1Pcs
Options:
Paper Role
Thermal printer
Patientenmonitor Wall mounts (3 Models)
Patientenmonitor Trolley (5 Models)
Thermal printer
Patientenmonitor Wall mounts (3 Models)
Patientenmonitor Trolley (5 Models)
CO2 Sample Line
Nasal Tube
Power Adapter
Water-trap Column
Airway Adapter
IBP Adapter (2-IBP)
IBP Reusable Interface Cable
IBP Disposable Transducers
Technical Spezifikationen:
ECG
Lead Mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
Lead selection I, II, III, avR, avL, avF, V,
Wellenform 2 ch
Lead mode 3 Leads ( R, L, F or RA, LA, LL)
Lead selection I, II, III,
Wellenform 1 ch
Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV, auto
HR and Alarm
Spektrum
Erwachsene 15 ~ 300 bpm
Neo/Ped 15 ~ 350 bpm
Accuracy ± 1% or ± 1bpm,which great
Resolution 1 bpm
Sensitivity > 200 (uV )
Differential Input Impedance > 5 MΩ
CMRR
Monitor > 105 dB
Operation > 105 dB
Diagnosis > 85 dB
Electrode offset potential ±300mV
Leakage Current < 10 uA
Baseline Recovery < 3 S After Defi.
ECG Signal Spektrum ±8 m V ( Vp-p )
Bandwidth
Surgery 1 ~ 15 Hz
Monitor 0.5 ~ 35 Hz
Diagnostik 0.05 ~ 100 Hz
Calibration Signal 1 (mV ), Accuracy ：±5%
ST Segment Überwachung Spektrum
Measure and Alarm -2.0 ~ +2.0 mV
ARR Detecting
Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY,MISSED BEATS, PNP, PNC
Alarm Available
Review Available
RESPARATION
Method Impedance between R-F(RA-LL)
Differential Input Impedance >2.5 MΩ
Measuring Impedance Spektrum: 0.3~5.0Ω
Base line Impedance Spektrum: 0 – 2.5 KΩ
Bandwidth 0.3 ~ 2.5 Hz
Resp. Rate
Measuring and Alarm Spektrum
Erwachsene 0 ~ 120 rpm
Neo/Ped 0 ~ 150 rpm
Resolution 1 rpm
Accuracy ±2 rpm
Apean Alarm 10 ~ 40 S
NIBP
Method Oscillometric
Mode manuell, Auto, STAT
Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Spektrum 40 ~ 240 bpm
Alarm Type SYS, DIA, MEAN
Measuring and alarm Spektrum
Erwachsene Mode
SYS 40 ~ 270 mmHg
DIA 10 ~ 215 mmHg
MEAN 20 ~ 235 mmHg
pädiatrisch Mode
SYS 40 ~ 200 mmHg
DIA 10 ~ 150 mmHg
MEAN 20 ~ 165 mmHg
neonatal Mode
SYS 40 ~ 135 mmHg
DIA 10 ~ 100 mmHg
MEAN 20 ~ 110 mmHg
Resolution
Pressure 1mmHg
Accuracy
Pressure
Maximum Mean error ±5mmHg
Maximum Standard deviation ±8mmHg
Overpressure Protection
Erwachsene Mode 297±3 mmHg
pädiatrisch Mode 240±3 mmHg
neonatal Mode 147±3 mmHg
SpO2
Measuring Spektrum 0 ~ 100 %
Alarm Spektrum 0 ~ 100 %
Resolution 1 %
Accuracy 70% ~ 100% ±2 %
0% ~ 69% unspecified
Actualization interval Über 1 Sec.
Alarm Delay 10 Sec.
Pulse Rate
Measuring and Alarm Spektrum 0~254bpm
Resolution 1bpm
Accuracy ±2bpm
TEMPERATURE
Channel 1
Measuring and Alarm Spektrum 0 ~ 50 C
Resolution 0.1~C
Accuracy ±0.1~C
Actualization interval Über 1 Sec.
Average Time Constant < 10 Sec.
IBP
Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm Spektrum
ART 0 ~ 300 mmHg
PA -6 ~ 120 mmHg
CVP/RAP/LAP/ICP -10 ~ 40 mmHg
P1/P2 -10 ~ 300 mmHg
Press Sensor
Sensitivity 5 uV/V/mmHg
Impedance 300-3000Ω
Resolution 1 mmHg
Accuracy ±2% or ±1mmHg, which great Über 1 Sec.
